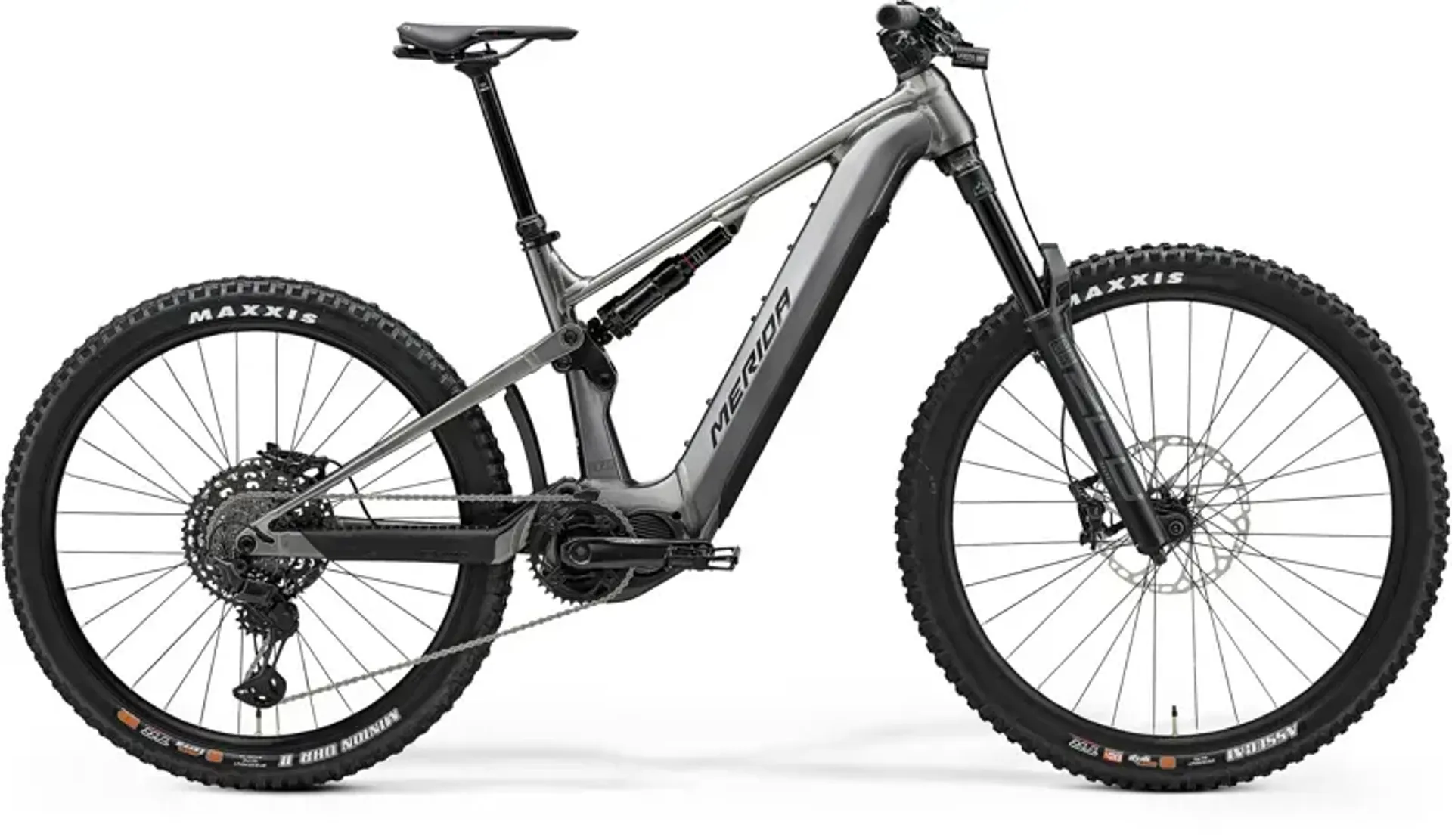

Merida eOne-Sixty 675 - MY25 - Grey Black

Season:2025

Brand:Merida

Code:P-Q835

Experience the thrill of a vast range and ride fun without breaking the bank.

The eONE-SIXTY 675 features a durable aluminium frame and a user-removable 750 Wh battery, with an optional 360 Wh range extender. It combines award-winning handling and suspension with budget-friendly components to deliver maximum value. A robust Marzocchi Z1 170 mm fork and Bomber Air shock ensure trail stability, while the Shimano Deore Linkglide drivetrain is built for daily e-bike use.

With the latest eONE-SIXTY, every descent is an adventure waiting to happen. Its all-aluminium frame offers exceptional value and battery range, powered by a removable 750 Wh battery and optional 360 Wh range extender. The geometry, inspired by the award-winning ONE-SIXTY enduro range, provides handling that conquers tough climbs and exhilarating descents. The FAST kinematic suspension, with 174 mm of rear wheel travel, adapts to any trail challenge.

The bike's mixed wheel size, with a 29" front and 27.5" rear, allows for playful handling, and can be switched to a full 29er setup without altering the geometry, thanks to the flip chip design. Low standover heights across all sizes offer a choice between a longer frame for stability or a shorter one for agility. Some models include a 30-230 mm travel-adjustable dropper post.

Features:

  • Fourth generation LITE aluminium frame with 174 mm rear wheel travel.
  • Marzocchi Z1 fork with 170 mm travel and Bomber Air rear shock.
  • Durable Shimano Deore Linkglide drivetrain.
  • MERIDA tubeless-ready wheelset.
  • User-removable 750 Wh battery with optional 360 Wh range extender.
  • Powerful Shimano EP801 drive unit.
  • Mixed wheel size as standard with option to full 29".
  • Reach-based AGILOMETER sizing system.
  • Long-travel dropper posts on all sizes.
Technical Information
  • Frame
    Lite IV - Hydroformed 6061 double butted aluminium with integrated battery. Internal cable routing via smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29 x 2.6.
  • Rear Shock
    Marzocchi Bomber Air; platform.
  • Fork
    Marzocchi Z1 eMTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29 x 2.6.
  • Headset
    Acros ICR Merida external neck with Blocklock.
  • Stem
    Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes.
  • Handlebar
    Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise.
  • Grip
    Merida Expert EC.
  • Brake Type
    Hydraulic disc.
  • Brake Lever
    Shimano Deore M6120.
  • Brake Calipers
    Front: Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor. Rear: Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor.
  • Tyres
    Front: Maxxis Assegai; 29 x 2.5; Kevlar bead, folding; TR EXO+ 3C MaxxGrip. Rear: Maxxis DHR II; 27.5 x 2.4; Kevlar bead, folding; 3C DD TR MaxxTerra.
  • Wheels
    Rims: Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29; rear 27.5. Spokes: Black stainless. Front Hub: Shimano TC500-B; 110x15mm; 32 spoke; Centerlock. Rear Hub: Shimano TC600-HM-B; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removable lever, 6/4mm allen key.
  • Speeds
    10 Speed.
  • Rear Derailleur
    Shimano XT RDM5130 LinkGlide 10.
  • Shift Levers
    Shimano SL-MT500-L dropper lever with Shimano XT M5130-10 shifter.
  • Chain
    Shimano LG500.
  • Cassette
    Shimano LG400; 11-43 teeth; 10 Speed.
  • Chainset
    FSA 1x Steel chainring; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide.
  • Bottom Bracket
    Part of Shimano Steps motor.
  • Pedals
    VP VPE-527.
  • Saddle
    Merida Comp SL; 28% recycled material; V-mount; including Merida minitool.
  • Seat Post
    Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L: 200mm seat post travel - XL: 230mm seat post travel.
  • Motor
    Trendpower Internal Battery Gen 2; 750Wh, Shimano EP801; 85Nm.
  • Battery Capacity
    750Wh.
  • eBike Display
    Shimano SC-EM800.
