Merida

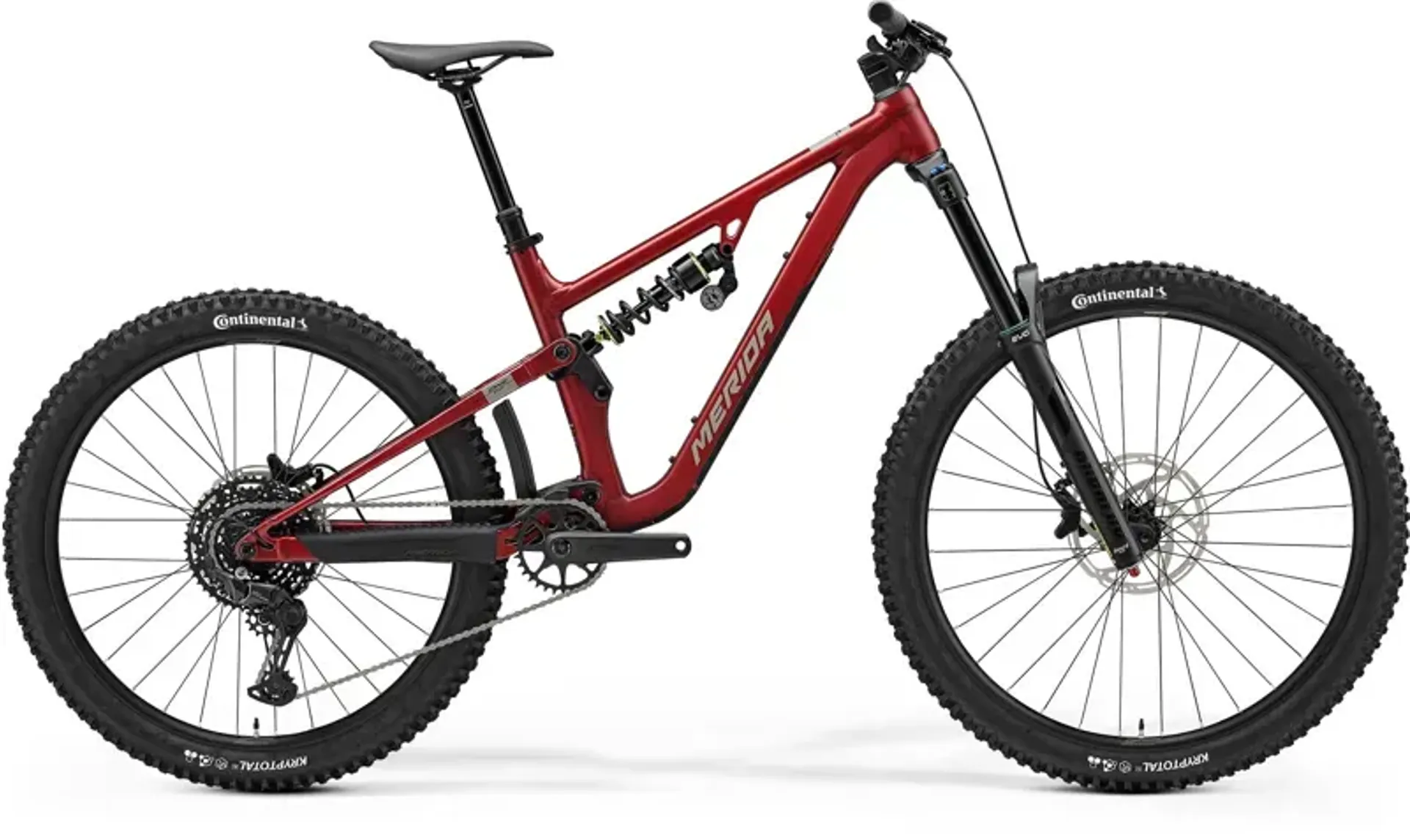

Merida One-Sixty FR 400 - MY25 - Dark Red Grey Black

£2,800.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

In the unlikely event that you are unhappy with your purchase or you have received a faulty item, please review our returns policy below:

REFUNDS
Refunds are processed via the original payment method used for your purchase and refunds can only be processed to the card originally used for the transaction. Please allow up to 14 days for the monies to be visible in your account, this is due to bank clearance policies. Cheques are not accepted as a method of payment or for refunds.

STORE PURCHASES
We are happy to refund your item within 7 days for a full refund, or 14 days for a credit note. Proof of purchase is required, i.e. a receipt and items are to be unopened and unused (unless faulty). Kindly note we are unable to refund customised, special and bicycle orders.

WEB ORDER RETURNS
All customers are to email
info@essexbicycles.com for all returns and queries prior to posting. Returns will not be accepted unless you have received an email confirmation from Essex Bicycles.

We are able to accept refunds for items within 30 days of purchase for a full refund or credit note. Proof of purchase is required and all items are to be unopened and unused (unless faulty) and returned in its original condition and packaging.

All web order purchases are to be returned to our store address unless arranged otherwise and the customer is responsible for all postage costs and for packaging the item safely and securely. Customers are to email info@essexbicycles with the order number and date of purchase before being returned to Essex Bicycles. This is required in order to process all refunds efficiently and without further delays.

DISTANCE SELLING
In addition to our Returns Policy, under the Consumer Contracts Regulations, you have the right to cancel your order up to 14 days from the day you receive your goods if you are an online, mail or telephone order customer. You then have a further 14 days from the date you notify the retailer of your cancellation to return the goods. Under the Consumer Rights Act you have an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. However, this right is limited to 30 days from the date you took ownership of the goods (this could be the date of purchase or the date the goods were delivered to you - whichever is later).

FAULTY GOODS
Under the Consumer Rights Act you have an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund. But this right is limited to 30 days from the date you took ownership of the goods (this could be the date of purchase or the date the goods were delivered to you - whichever is later).’

Merida One-Sixty FR 400 - MY25 - Dark Red Grey Black

Season:2025

Brand:Merida

Code:P-Q060

Built for progression, built tough.

The ONE-SIXTY FR 400 builds on the proven performance of their aluminium enduro frame and cranks the volume up. The music? Heavy metal, thanks to a coil sprung back end plus longer travel 180 mm fork, mixed wheel size handling for a ride that's ready to get rad. Suspension performance and durability have been prioritized over drivetrain bling to create a bike that's ideal for rippers on a budget or riders that go hard every time they hit the bike park.

The ONE-SIXTY FR builds on the solid platform of the award-winning ONE-SIXTY, but cranks the volume up. It's built tough so that you can hit the bike park all day long, or just rip the toughest tracks and trails time after time, safe in the knowledge that the bike won't let you down. To boost the capability, longer travel forks pushing out 180 mm travel are paired with coil shocks delivering 171 mm of rear wheel travel, mounted on a tough aluminium chassis. All bikes run a mixed 29" front and 27.5" rear wheel size for maximum manoeuvrability, whether you're ripping turns or sending it hard. However, you can switch to a full 29er setup without impacting the geometry, thanks to the flip-chip system. The AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height. At the same time, the suspension becomes more progressive as you size up, and all bikes are fitted with long-travel dropper posts.

Features:

  • Full aluminium frame with FAST kinematic suspension and progressive geometry.
  • Mixed 29/27.5" wheels with tough casing tyres.
  • SR Suntour Durolux 38 180 mm fork and DVO Jade R coil rear shock.
  • Continental Kryptotal tyres with Enduro front casing Downhill rear.
  • Long-travel dropper post.
  • Powerful Tektro 4-piston hydraulic disc brakes.
Technical Information
  • Frame
    Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5
  • Rear Shock
    DVO Jade X D3; coil with spring rates Xshort & Short: 300, Mid: 350, Long: 400, Xlong: 450
  • Fork
    SR Suntour Durolux 38 RC; Air; 180mm travel; Tapered; 44mm fork offset; Max tyre size: 29 x 2.6
  • Headset
    Acros ICR Merida external neck; Upper and lower IPS sealing
  • Stem
    Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length - 40mm (all sizes)
  • Handlebar
    Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
  • Grip
    Merida Comp EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Tektro Gemini HD-M535
  • Brake Calipers
    Front: Tektro Gemini HD-M535; 4 piston hydraulic disc brake caliper with Tektro TR203-45; 203mm rotor Rear: Tektro Gemini HD-M535; 4 piston hydraulic disc brake caliper with Tektro TR203-45; 203mm rotor
  • Tyres
    Front: Continental Kryptotal-F; 29 x 2.4; Kevlar bead; TR; Enduro casing; Soft Compound Rear: Continental Kryptotal-R; 27.5 x 2.4; Kevlar bead; TR; Enduro Casing; Soft Compound
  • Wheel Size
    29 / 27.5
  • Wheels
    Rims: Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29; rear 27.5 Spokes: Double Butted Black stainless Front Hub: Shimano TC500-B; 110 x 15mm; 32 spoke; Centerlock Rear Hub: Shimano TC500-HM-B; 148 x 12mm; 32 spoke; Centerlock
  • Speeds
    10
  • Rear Derailleur
    Shimano CUES U6000; GS
  • Shift Levers
    Shimano CUES U6000
  • Chain
    KMC xGlide
  • Cassette
    Shimano LG300; 11-48 teeth; 10 speed
  • Chainset
    Merida Expert TR II; 32 tooth chainset with Merida Expert TR ISCG05; Crank length - 165mm (all sizes)
  • Bottom Bracket
    Samox BSA 24mm EB2401
  • Saddle
    Merida Comp SL; V-mount - made with 25% recycled material
  • Seat Post
    Merida Expert TR II; 34.9mm diameter; 0mm layback; XShort/Short: 150 mm seat post travel - Mid: 170 mm seat post travel - Long: 200 mm seat post travel - XLong: 230 mm seat post travel
