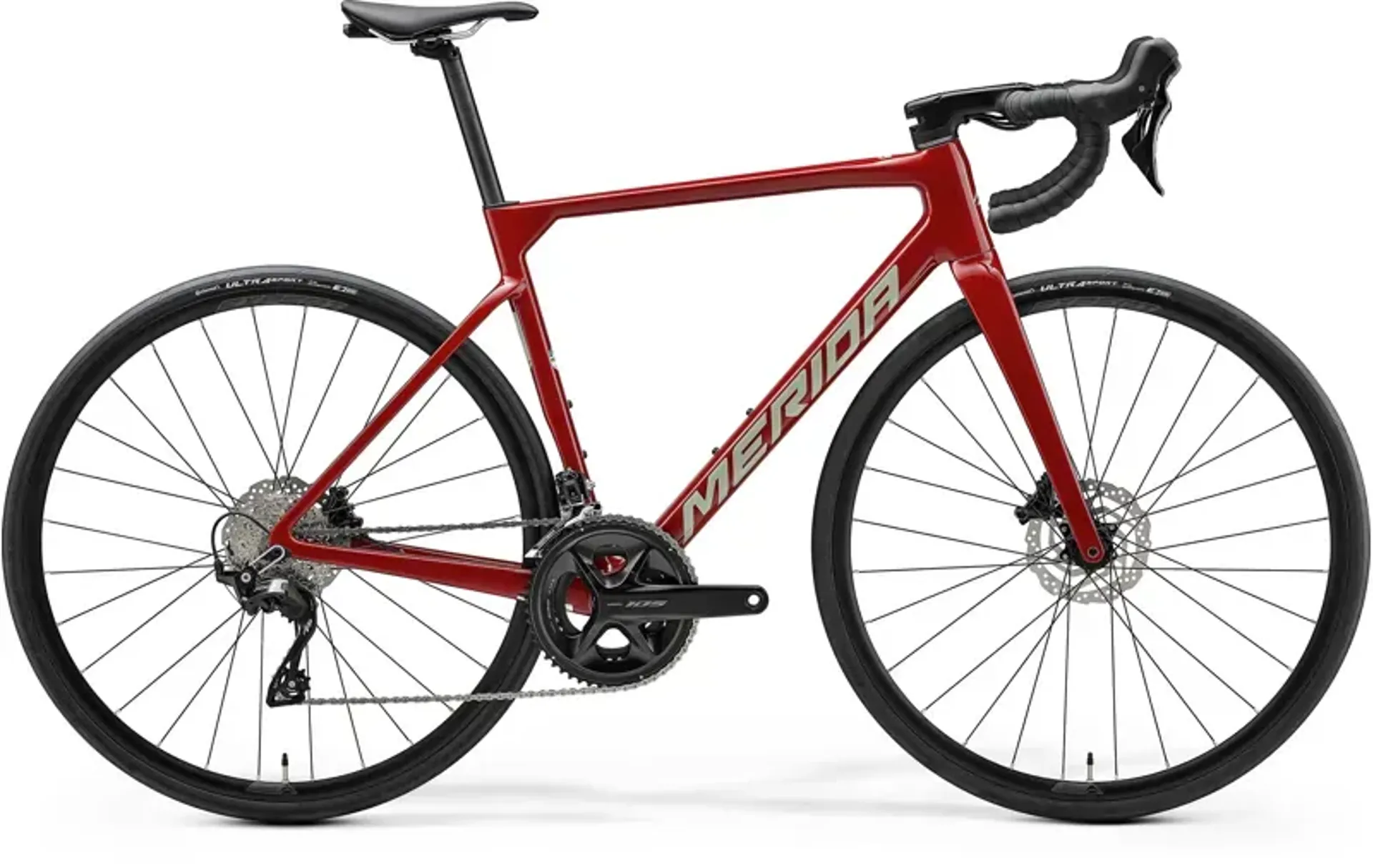

Merida Scultura 4000 - MY25 - Heritage Red Grey

Season:2025

Brand:Merida

Code:P-Q365

Experience the ultimate in cycling performance with the SCULTURA 4000.

Based around the latest, super smooth 12-speed 105 groupset from Shimano and featuring their award-winning SCULTURA CF3 full carbon frame, the SCULTURA 4000 is far from an entry bike to their latest SCULTURA frame design family. Similarly to its bigger brothers, it combines a long list of air slicing features and race-proven geometry, adapted from their REACTO family, with low weight and class-leading riding comfort creating an almost unbeatable package.

The fifth generation of their lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from their test and award-winning REACTO aero bike, the SCULTURA is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact, it takes these factors to the next level, so far that Cycling Weekly gave it the highly sought after 'Best Value Race Bike of the Year 2024' award.

Available in CF5 and CF3 carbon frame versions, both sharing their geometry with the World Tour proven REACTO, their classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.

Features:

  • Lightweight CF3 carbon frame (approx. 997 g - in size M)
  • Shimano 105 12-speed groupset
  • MERIDA EXPERT SL II stem
  • MERIDA EXPERT SL handlebar
  • MERIDA EXPERT SL wheelset
  • MERIDA EXPERT CC carbon seat post
  • DISC COOLER technology
Technical Information
  • Frame
    CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2 to 1 1/4 headtube. Max tyre size - 30c
  • Fork
    Scultura CF3 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology
  • Headset
    Merida Team SL (OP-203 neck)
  • Stem
    Merida Expert SL 2PII; aluminium; -9 degree rise -Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
  • Handlebar
    Merida Expert SLII; aluminium; 380mm(XXS-XS-S), 400mm (M-L-XL)
  • Grip
    Merida Expert
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano 105
  • Brake Calipers
    Front: Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor Rear: Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor
  • Tyres
    Front: Continental Ultra Sport III; 700 x 28C; Kevlar bead Rear: Continental Ultra Sport III; 700 x 28C; Kevlar bead
  • Wheel Size
    700c
  • Wheels
    Rims: Merida Expert SL; 17mm inner rim width; 22mm rim depth; aluminium Spokes: Double Butted Black stainless Front Hub: Shimano HB-TC500; 100 x 12mm; 28 spoke; Centerlock Rear Hub: Shimano FH-TC500-HL; 142 x 12mm; 28 spoke; Centerlock
  • Speeds
    24
  • Front Derailleur
    Shimano 105
  • Rear Derailleur
    Shimano 105; GS
  • Shift Levers
    Shimano 105 disc
  • Chain
    Shimano CN-M6100-12
  • Cassette
    Shimano CS-R7101; 11-34 teeth; 12 speed
  • Chainset
    Shimano 105; FCR7100, 52-36 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
  • Bottom Bracket
    SM-BB71-41B, Pressfit 86.5
  • Saddle
    Merida Expert SL; V-mount; including Merida minitool
  • Seat Post
    Merida Expert CC; 27.2mm diameter; 15mm layback; Carbon
